B90

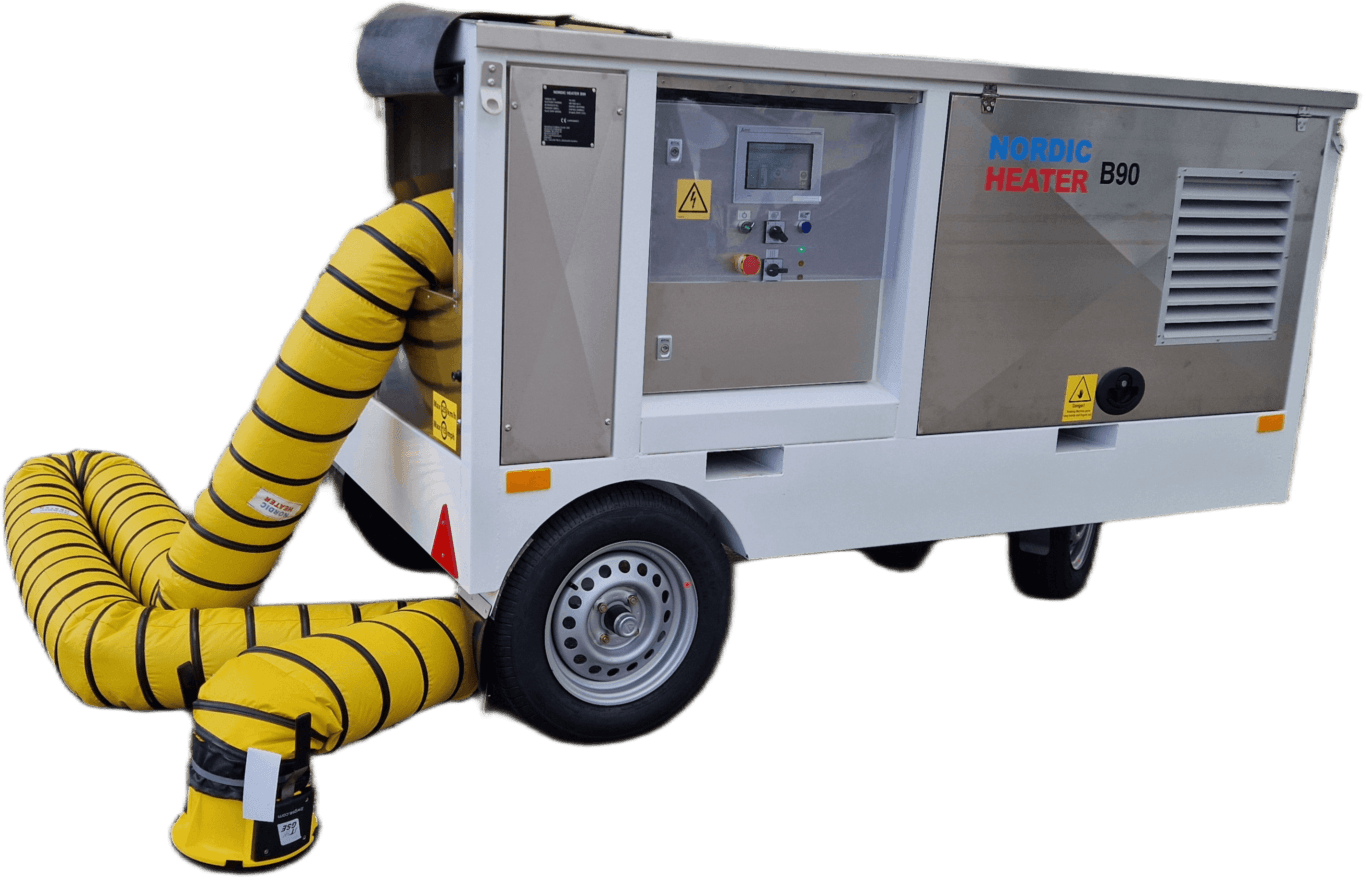

The world’s first battery powered aircraft heater. The heater also called B90, has a battery life of approximately 12 hours and a heating output of 90 kW. Suitable for aircrafts with 300 seats

Chassis made of galvanized steel. Top cover of coated sheet metal with gas springs for easy opening and access to internal parts. 10-inch pneumatic reinforced high-pressure tires, 6.2 bars, with rear axle suspension. Tow device based on standard 50mm coupling with parking brake. Heat exchanger and fuel tank made of stainless steel. Large integrated hose compartment for the standard Ø203 / 8 inch, 7,5m / 25 feet long PVC coated, high temperature hose with associated very resistant PCA connector. Patented PCA connection to the cabin, made of nylon with a neoprene seal, the connection is UV resistant and resistant to chemicals and fuel. Roof LED light indicating operation status.

Heat effect

90 kW /
300 000 BTU

Temperature

10°C – 90°C /
50°F – 194°F

Fan pressure

3,5 kPa /
0,51 PSI

Fan flow

3 800 m³/h /
2 337 CFM

Technical data

Patented fan with electrical driven motor of 2.5 kW (Boost function). Battery pack 48V/500 Ah.
Nominal runtime of 12 hours on one charge.
Internal charger with CEE 16A/400V connection. Full charging time approximately 2,5 hours.
Burner Bentone BF1 RME 90kW / 300 000 BTU with ECO 2018 design running on HVO100.
Three fan speeds plus boost function. Max flow 3800 m3/h. Max pressure 3.5 kPa.
Three heating modes: +10°C to +90°C (factory setting 30, 45, 60°C, other settings upon order).
Ventilation mode available (no heat).

Options

Tow eye device.
GPS positioning system
Hose longer than standard 7,5 meters
Beacon light
Customer defined colors and logos
Spare parts kit
It can also be mounted on a truck, trailer etc

Dimensions

Length 4040 mm / 159 inch
Width 1500 mm / 59 inch
Height 1540 mm / 61 inch
Weight 990 kg / 2183 lbs (empty tank)
Fuel tank 95 liters / 25 gallon

Certificates and patents

Holds patent
PCT/SE2015/051055
